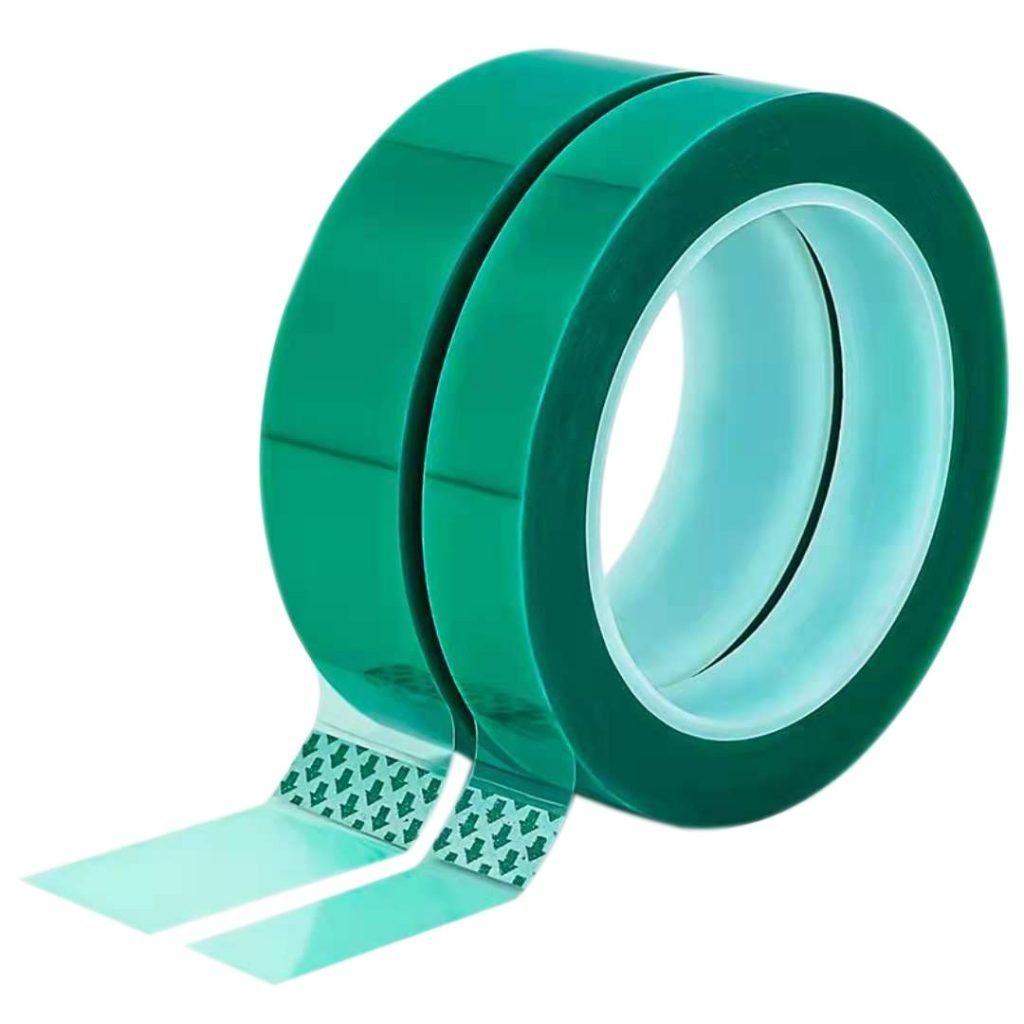

EV Battery Tapes
The Donlee battery tape series is mainly made of PET, PI, BOPP, or other functional base films, which are coated with specialized pressure-sensitive adhesive by a precision coating machine. The products can be customized in thicknesses, colors, and adhesions in different application scenarios. We offer a wide range of solutions for the battery industry including terminal fixing tape, bonding tape, temperature resistant tape, EV battery wrapping tapes, fireproof and insulation tapes, etc, some other news tapes for battery are constantly developing. The above products are widely applied in Lithium battery as terminal fixing, battery tabs and aluminum case insulation and wrapping, temporary protection for pouch cells during their in-plant processing, etc.
We are more than happy to hear from you.
| Item No. | Substrate | Adhesive | Total Thickness | Peeling Strength | Description | Application |
|---|---|---|---|---|---|---|
| (Microns) | (N/25mm) | |||||
| LA30D-800CL | PET blue | Acrylic | 30±2 | ≥4 | Excellent electrolyte resistance, high adhesion, soft, flat, and easy to apply | For lithium batteries cores and terminals strapping fixation. |
| LA30G-700CL | PET green | Acrylic | 30±2 | ≥5 | ||
| LA75D-1200Z | PET | Acrylic | 105±6 | 12±3 | Using None-silicone PET substrates, a dual-layer structure | For insulative protection of aluminum cased batteries, provide an explosion-proof and impermeability barrier |
| DL70-15APE | BOPP | Acrylic | 72±4 | 0.22±0.05 | Good initial adhesion performance with firm holding, and excellent thermal stability. | For pouch cell process protection. No wrinkles after cells formed, no residues under high temperature and pressure, no cause ink transfer and fragments of printed codes. |
| IA25Y-500L | PI | Acrylic | 50±4 | ≥5 | Excellent mechanical properties, electrical insulation, and electrolyte resistance performance | For insulation protection of external electrode taps and circuits, also for batteries components bonding, assembling, sealing, and strapping. |
| TA25G-800CL | PET | Acrylic | 53±5 | 8±2 | Excellent High- temperature resistance, electric insulation, flame retardant performance. | For bonding cylindrical batteries blue, black and red plastic gaskets, using in the packing step of various cells and batteries. |
